Water Levels and Discharges All data are without validation 27.04.2024 00:02:32

VD Orlík River: Vltava Crest of dam elevation: 361.10 [m asl] Spillway elevation: 345.60 [m asl] Maximum flood control capacity level: 353.60 [m asl] Usable storage capacity level: 349.90 [m asl] Ineffective storage level: 329.60 [m asl] Vertical coordinate system: Balt p.v. Remark:

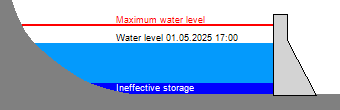

Schema:

Go to balance data (monthly series)

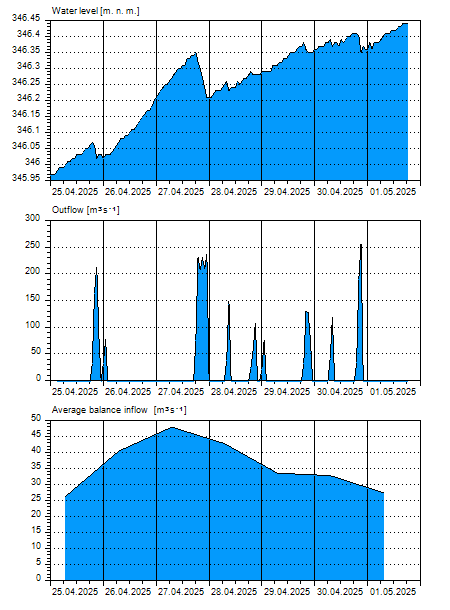

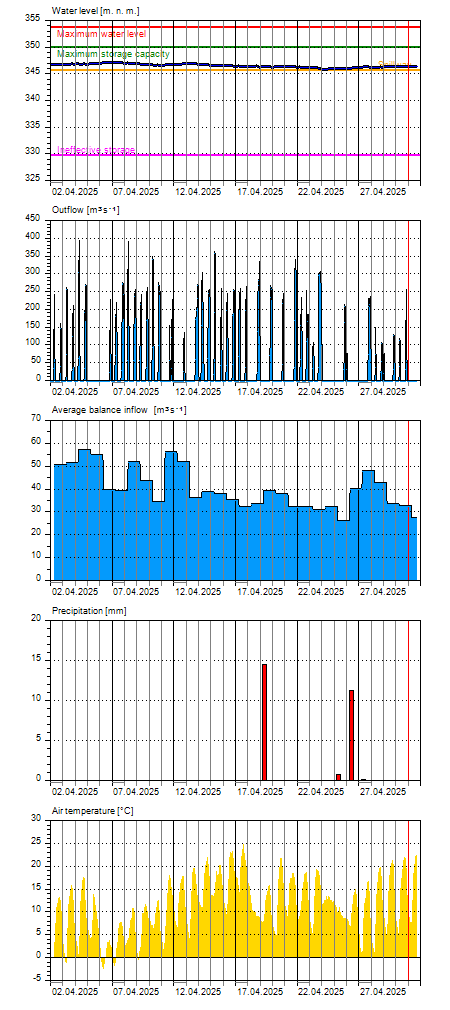

Date Water level [m. n. m.] Outflow [m3s-1] QN 26.04.2024 23:50 342.61 0.00 26.04.2024 23:40 342.61 0.00 26.04.2024 23:30 342.61 0.00 26.04.2024 23:20 342.61 0.00 26.04.2024 23:10 342.61 0.00 26.04.2024 23:00 342.61 0.00 26.04.2024 22:00 342.59 0.00 26.04.2024 21:00 342.58 0.00 26.04.2024 20:00 342.57 0.00 26.04.2024 19:00 342.56 0.00 26.04.2024 18:00 342.55 0.00 26.04.2024 17:00 342.54 0.00 26.04.2024 16:00 342.53 0.00 26.04.2024 15:00 342.52 0.00 26.04.2024 14:00 342.51 0.00 26.04.2024 13:00 342.50 0.00 26.04.2024 12:00 342.49 0.00 26.04.2024 11:00 342.49 71.60 26.04.2024 10:00 342.50 99.82 26.04.2024 09:00 342.51 17.23 26.04.2024 08:00 342.49 0.00 26.04.2024 07:00 342.49 0.00 26.04.2024 06:00 342.47 0.00 26.04.2024 05:00 342.47 0.00 26.04.2024 04:00 342.45 0.00 26.04.2024 03:00 342.44 0.00 26.04.2024 02:00 342.44 0.00 26.04.2024 01:00 342.42 0.00 25.04.2024 07:00 342.40 100.08 24.04.2024 07:00 342.45 135.61 23.04.2024 07:00 342.31 377.90 22.04.2024 07:00 342.59 239.00 21.04.2024 07:00 342.39 0.00 20.04.2024 07:00 342.17 0.00

Current values (26.04.2024 23:50) Water level in reservoir [m asl] 342.61 Volume [mil. m3] 473.28 Inflow [m3s-1] 48.98 Outflow [m3s-1] 0.00 Precipitation (24h) [mm] 0.8 Air temperature [°C] 10.1
