Water Levels and Discharges All data are without validation 02.05.2024 10:41:58

VD Dráteník River: Červený potok (BE) Crest of dam elevation: 418.24 [m asl] Spillway elevation: 416.76 [m asl] Maximum flood control capacity level: 417.91 [m asl] Usable storage capacity level: 416.68 [m asl] Ineffective storage level: 413.75 [m asl] Vertical coordinate system: Balt p.v. Remark:

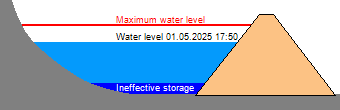

Schema:

Go to balance data (monthly series)

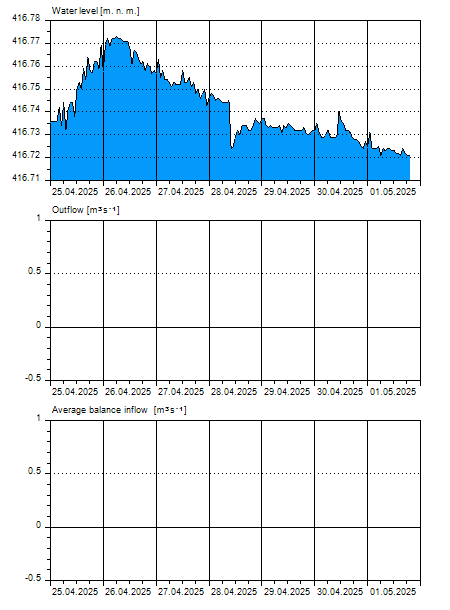

Date Water level [m. n. m.] Outflow [m3s-1] QN 02.05.2024 10:30 416.65 02.05.2024 10:20 416.65 02.05.2024 10:10 416.64 02.05.2024 10:00 416.64 02.05.2024 09:00 416.64 02.05.2024 08:00 416.65 02.05.2024 07:00 416.64 02.05.2024 06:00 416.64 02.05.2024 05:00 416.65 02.05.2024 04:00 416.65 02.05.2024 03:00 416.65 02.05.2024 02:00 416.65 02.05.2024 01:00 416.65 02.05.2024 00:00 416.64 01.05.2024 23:00 416.64 01.05.2024 22:00 416.65 01.05.2024 21:00 416.65 01.05.2024 20:00 416.65 01.05.2024 19:00 416.65 01.05.2024 18:00 416.64 01.05.2024 17:00 416.65 01.05.2024 16:00 416.65 01.05.2024 15:00 416.65 01.05.2024 14:00 416.65 01.05.2024 13:00 416.65 01.05.2024 12:00 416.66 01.05.2024 11:00 416.66 01.05.2024 07:00 416.66 30.04.2024 07:00 416.66 29.04.2024 07:00 416.68 28.04.2024 07:00 416.68 27.04.2024 07:00 416.68 26.04.2024 07:00 416.67

Current values (02.05.2024 10:30) Water level in reservoir [m asl] 416.65 Volume [mil. m3] 0.09 Inflow [m3s-1] Outflow [m3s-1] Precipitation (24h) [mm] Air temperature [°C]
